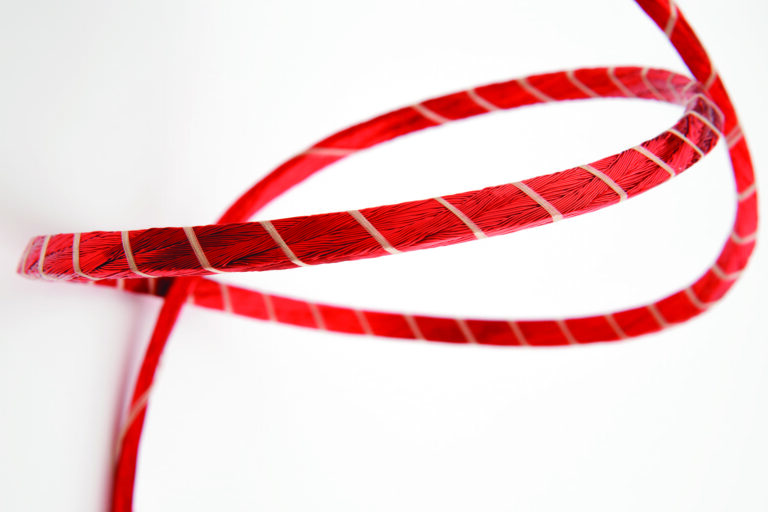

We offer a wide variety of custom Litz wire options. For example, we have produced Litz wire with thin flat cores with 48 AWG and finer wire to increase aspect ratios dramatically in order to meet demanding application requirements. We have also designed and manufactured a Litz wire from oxidized aluminum strand and another utilizing several hundred silver plated copper strands—each individually glass braided. Yet another construction utilized ceramic strands for extreme ambient temperature conditions. Constructions with mixed strand sizes to increase density and large AWG multifilar constructions have all been designed and manufactured at New England Wire. These have been developed in conjunction with our customer, in many cases to enable technology or extend capability or efficiency.
Custom Magnet Wire Materials
New England Wire works closely with its suppliers and leverages its own expertise to provide magnet wire materials that meet the needs of the specific applications. We routinely supply Litz wire constructions using magnet wires with standard NEMA and IEC enamels. We have also designed and manufactured Litz wire, both rounded and shaped, using bondable, fluoropolymer coated, ceramic or glass fiber magnet wire.
A Multitude of Insulation Options – Extruded, Taped, Braided or Served
We understand that there are many different insulation systems and have long standing relationships with magnet wire, tape and textile suppliers, as well as test labs and agencies. Several Litz wire constructions have been produced that utilize special insulations such as tapes required for insulation systems (like Nomex®, mica, and TufQUIN™) or extruded with fluoropolymers, TPE, silicone rubber, and PEEK, or served with Nylon or PTFE threads. Drawing on our diverse capabilities, we can accommodate the development, prototyping, testing, and manufacturing of insulated Litz wire products to meet your specific requirements.
Nomex® is registered trademarks of E. I. du Pont de Nemours and Company
TufQUIN™ is a registered trademark of 3M
